Scope Driving Light (5", Spot Beam)
SKU: IDL0501S
1 LUX RATING (PAIR)
RAW LUMENS
POWER
$170.01
$170.01
There are required products for this item. .
Product Information
Overview

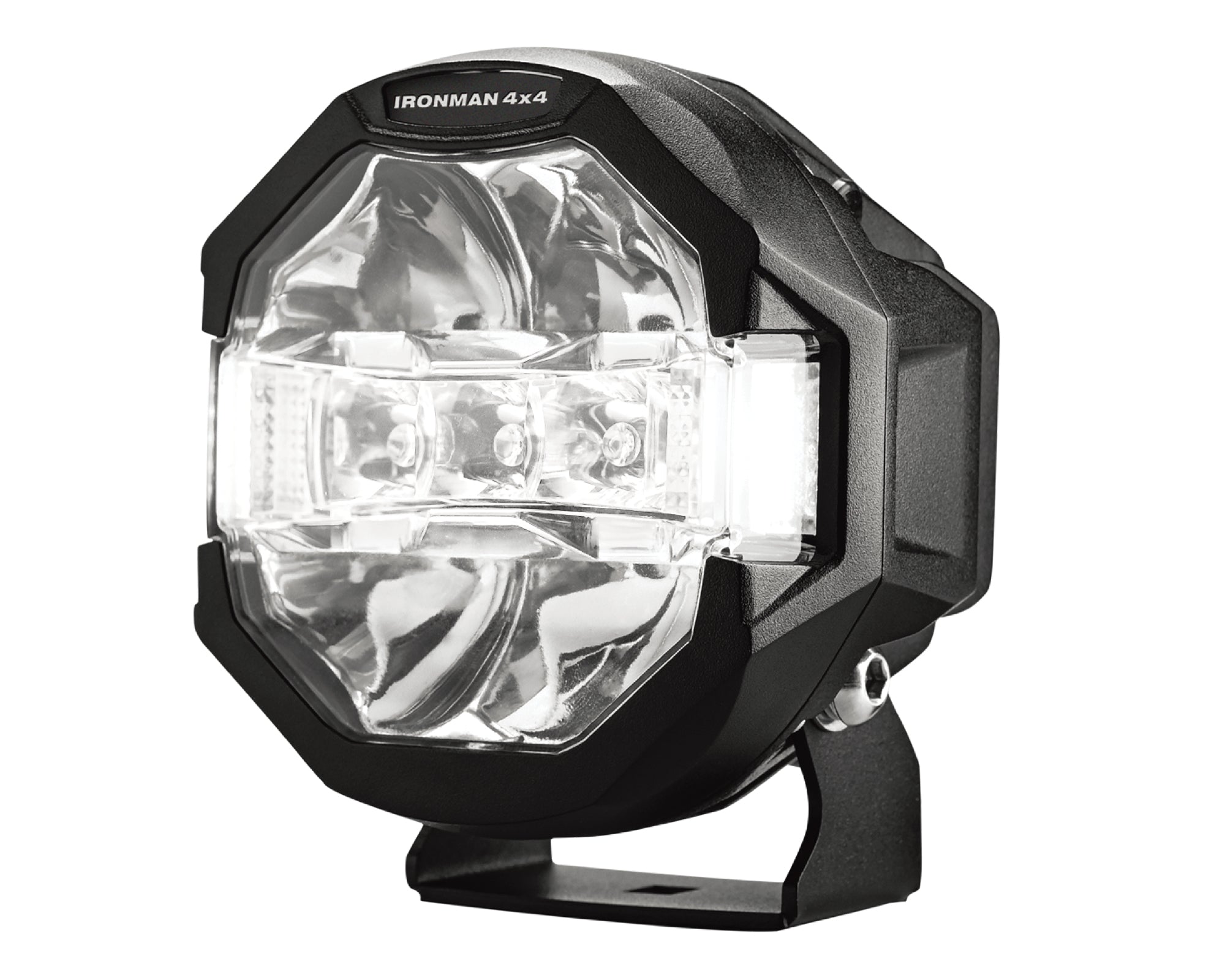

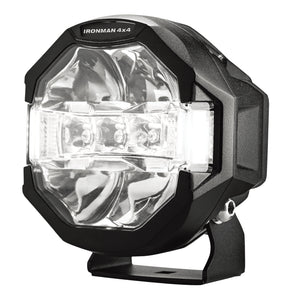

The Ironman 4x4 Scope 5” driving lights combine the best modern illumination technologies, pairing hooded reflectors with TIR optics to create an optimal output in both efficiency and performance. High-power OSRAM LED chips are mounted directly to the cast aluminium housing for improved heat dissipation, creating a sleeker body that can be installed in more places. Two position lights offer a DRL effect, while the illuminated logo completes the modern design. The Scope 5” driving light is available in SPOT or COMBO options.
Dimensions:
Width: 113mm (4.5”)
Depth: 90mm (3.5”)
Height: 114mm (4.5”)
Specifications
Beam Pattern: Spot or Combo
Power: 42W
Voltage: 10-32 Vdc
LED Chip: OSRAM
Lumens: 4,400
Colour Temperature: 5,700K
Operating Temperature: -40°C to +85°C (-40°F to +180°F)
Connector: Deutsch 3 pin
IP Rating: IP68/1P69K
1 LUX: Spot- 317m, Combo- 293m
Warranty: 3 Years
Certifications: R112, R10, CE, RoHS
Quantity Per Box: 1
Spot vs. Combo Beam Patterns - What they’re best used for?
A Spot and Combo version of the hooded reflector is available - the Combo driving light pushes more light out in a greater spread, while the Spot driving light puts all its effort into getting the light as far down the road as possible.
Spot Beam: This beam type is ideal for long-distance vision on remote highways and long straight, outback roads. It starts narrow and widens out at a longer distance.
Combo Beam: this beam type is a mix of a flood and spot beam, useful for a wider field of view at shorter distances on winding bush and alpine roads.
This beam type starts wide at shorter distances and then tapers in.
