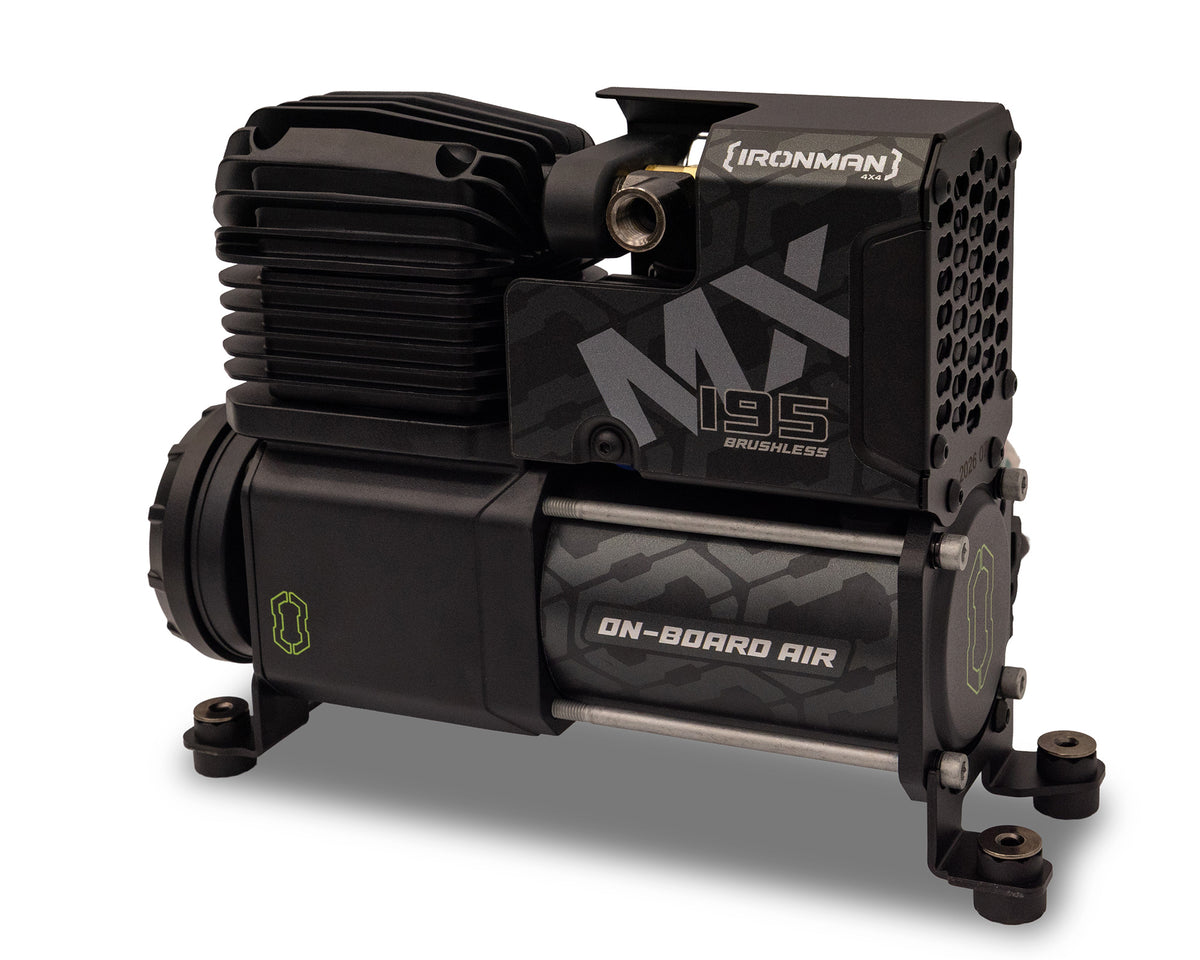

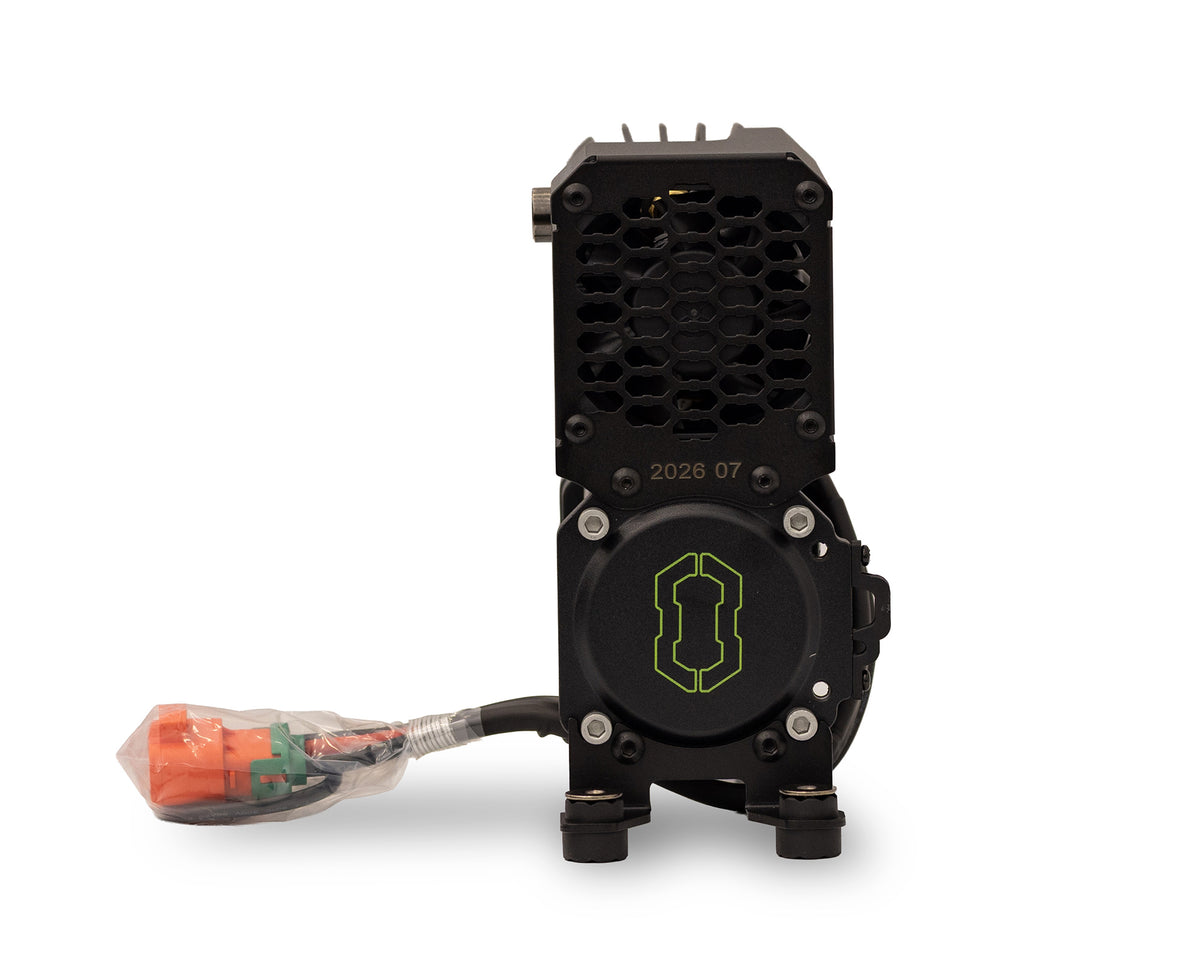

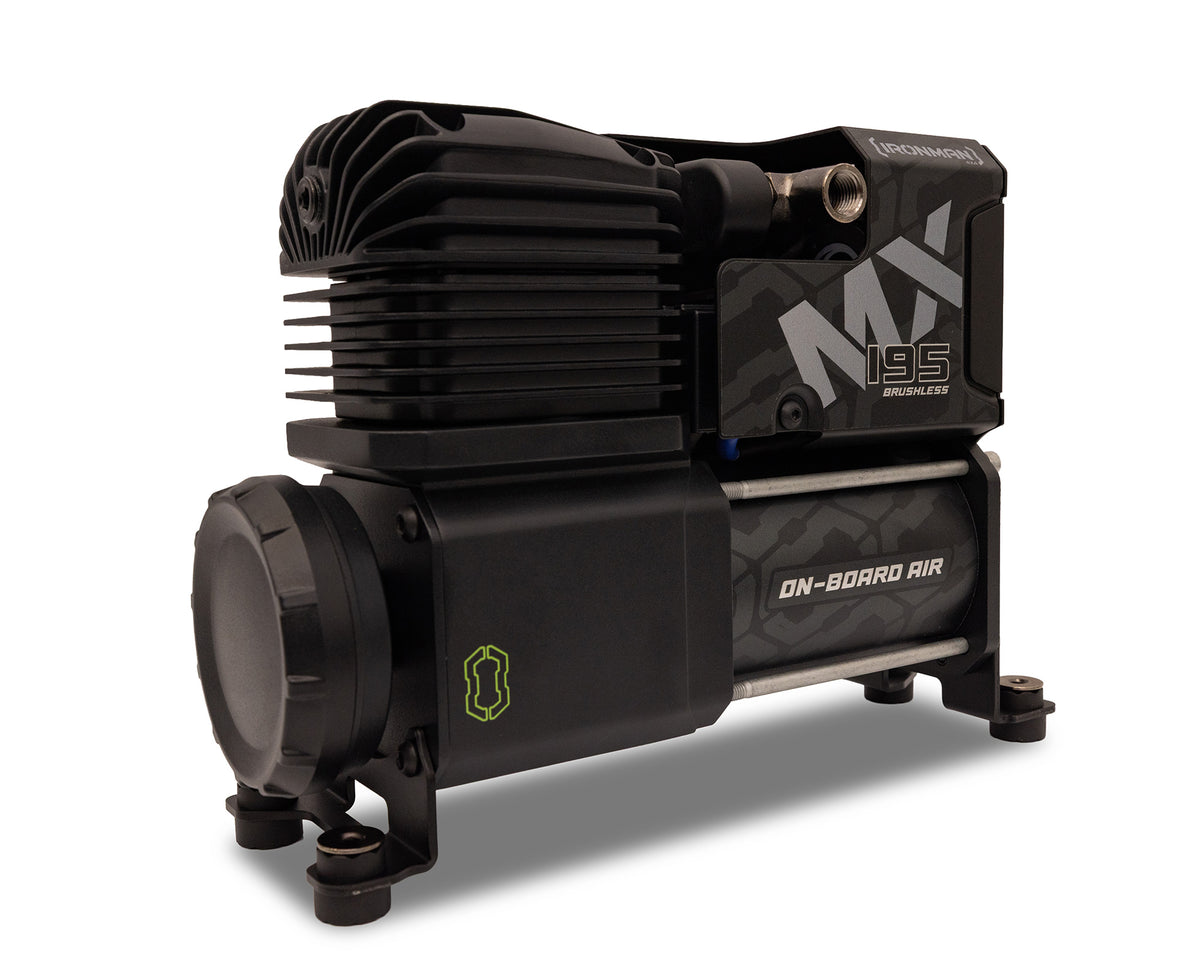

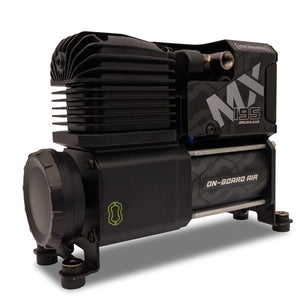

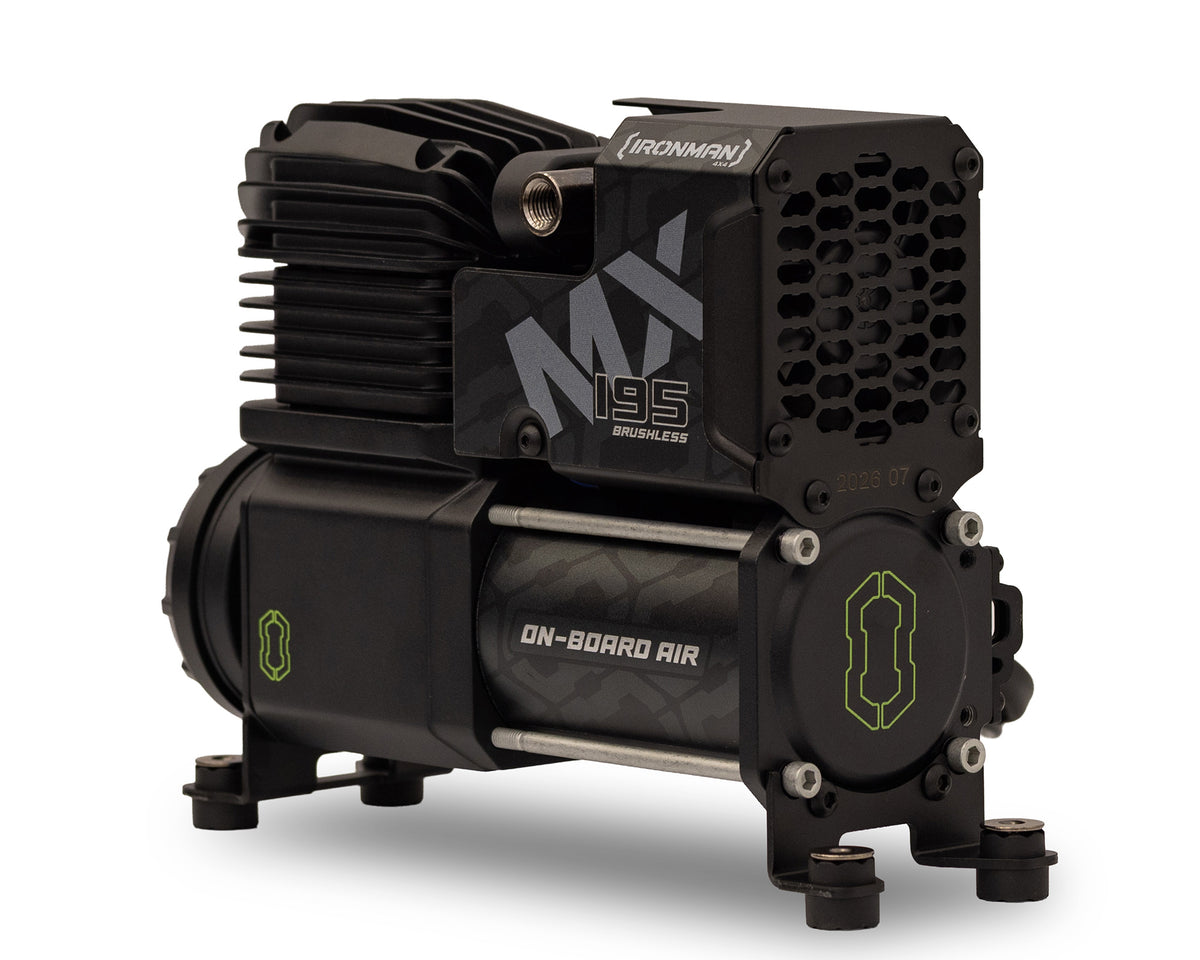

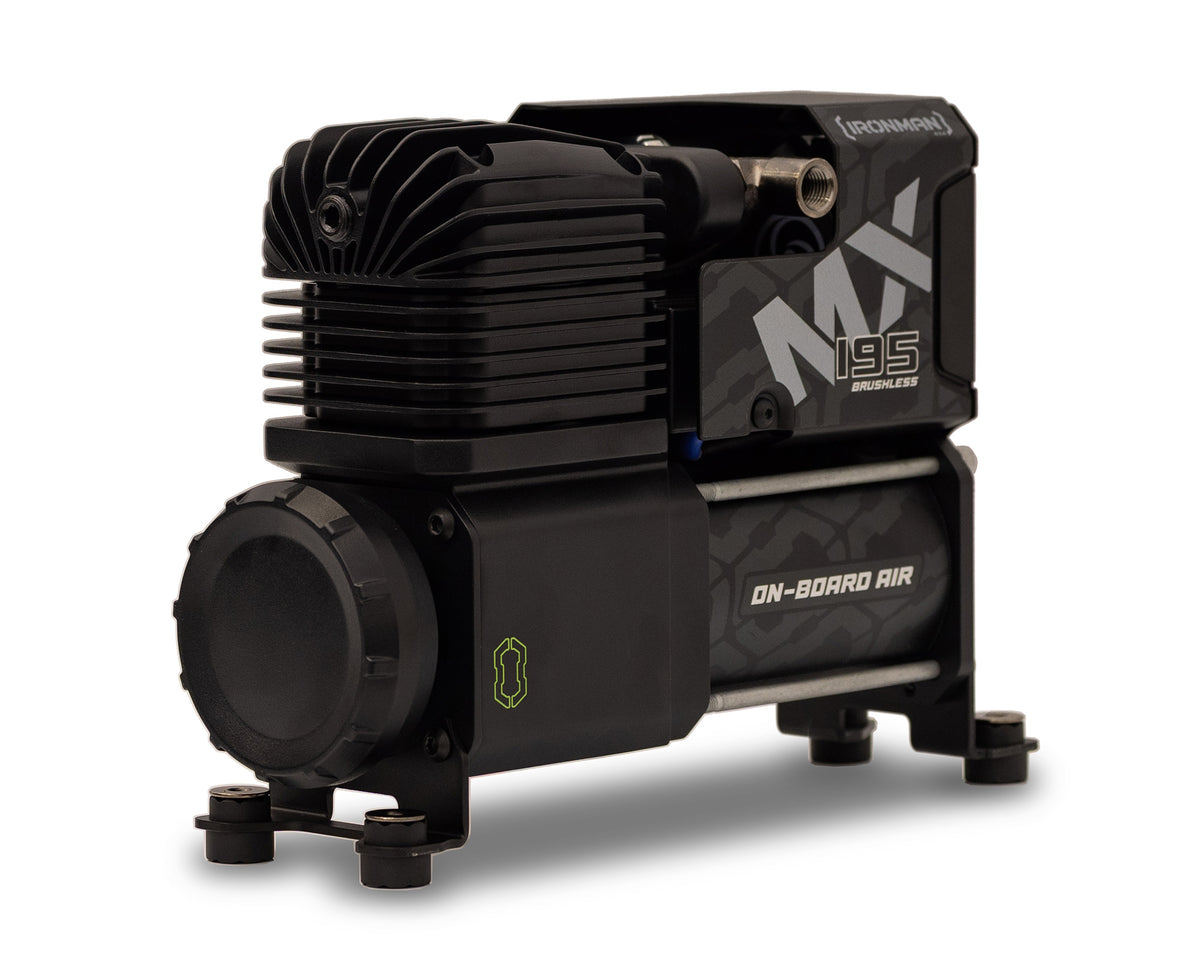

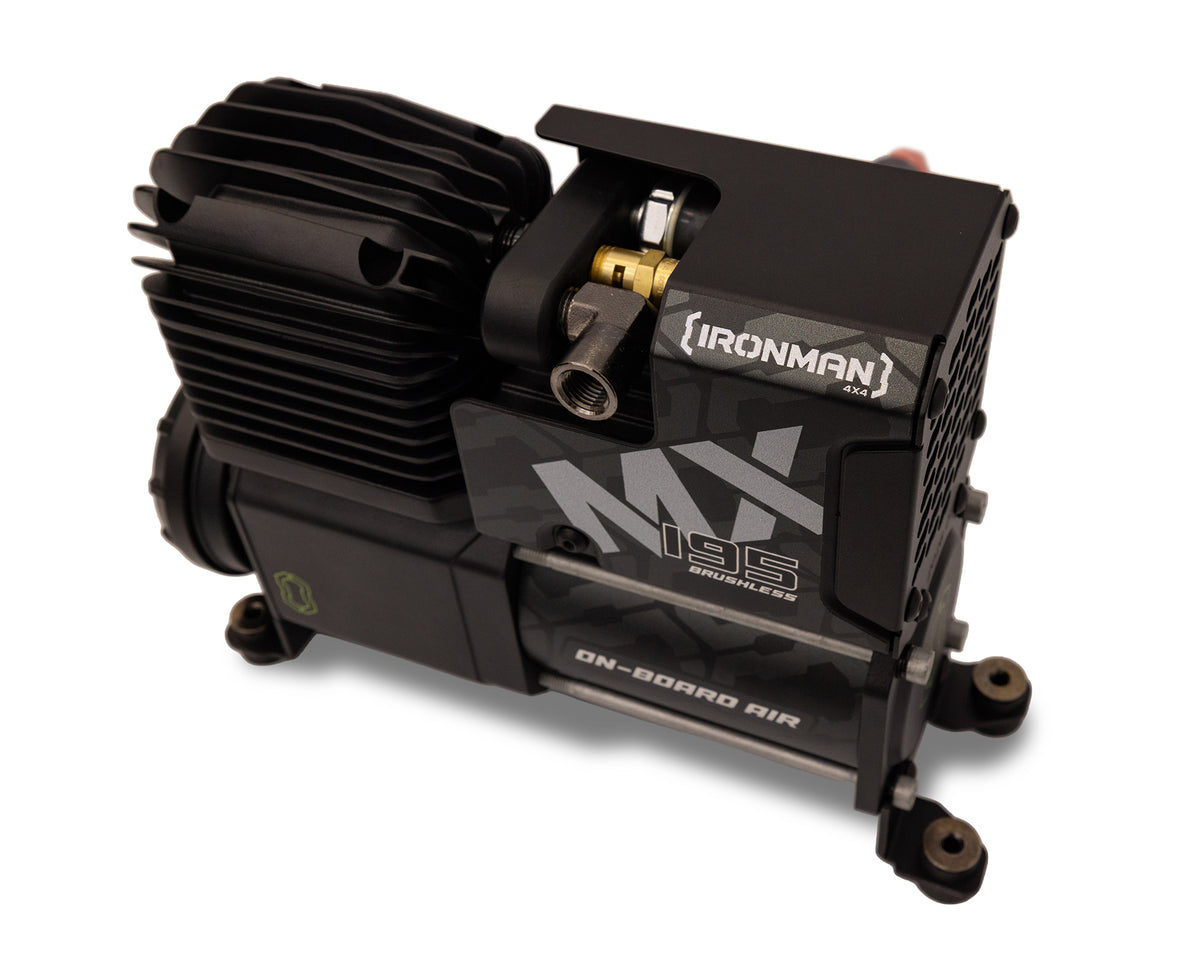

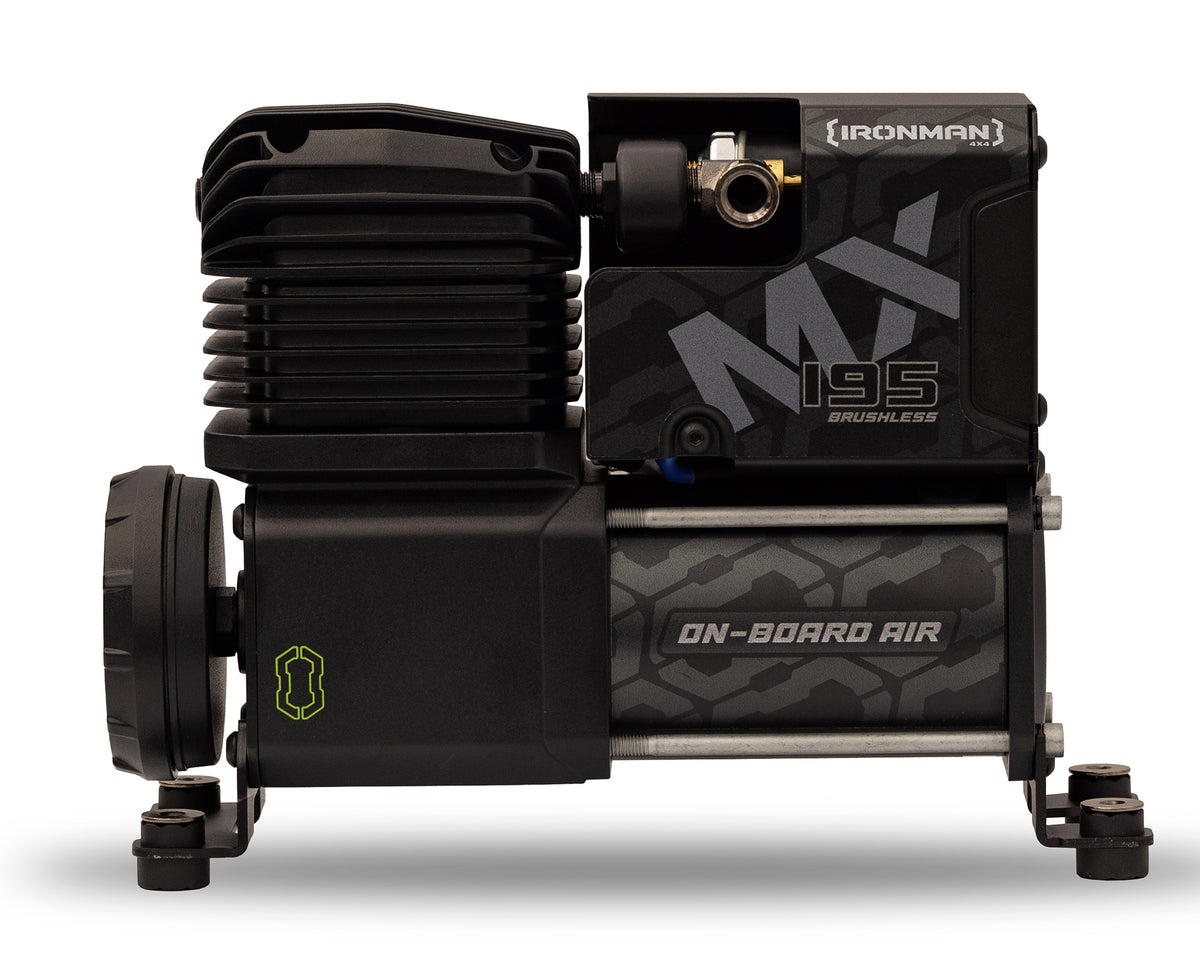

MX195 On-Board Air Compressor
SKU: IAC012
$799.00
$799.00
Required Products
There are required products for this item. .
Product Information
Overview
Built for fast, reliable tyre inflation on and off the tracks, the IRONMAN 4X4 MX195 Brushless 12V Air Compressor delivers serious performance from a compact on-board setup. Producing up to 195 LPM at 0 PSI and 130 LPM at 40 PSI, its high-performance brushless aluminium motor and 100% duty cycle provide continuous airflow when you need it, whether you’re airing up after a day on the tracks or running a more comprehensive on-board air system.
With an IP67 dust and water resistance rating, integrated motor cooling and thermal, current and voltage overload protection, the MX195 is built to handle demanding 4x4 conditions. Flexible horizontal or vertical mounting, twin air outlets and Nitto-style quick-connect fittings make it easy to configure to suit your setup, while the serviceable air filter and intelligent pressure management help deliver dependable performance trip after trip.
Specifications
- Flow Rate: 195 LPM @ 0 PSI | 130 LPM @ 30 PSI
- Max Pressure: 150 PSI
- Motor: Brushless Aluminium
- Piston: 65mm Big-bore
- Weight: 6.8 Kg
- Duty Cycle: 100%
- IP Rating: IP67 Dust & Water resistance

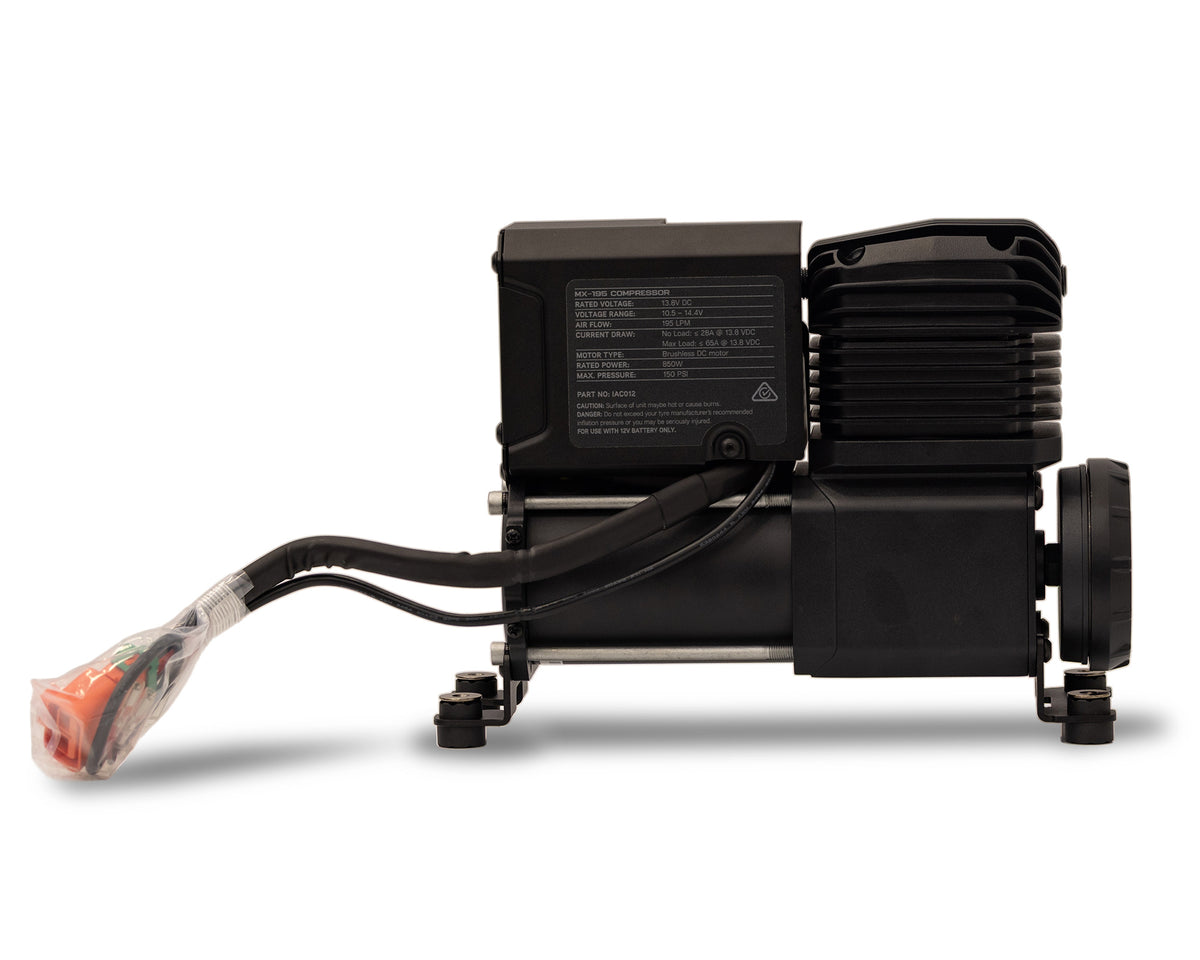

- Power Cable: 1.7m includes inline fuse and holder
- Fittings: Nitto style quick-connect
- Mounting Config: Vertical or horizontal
- Cooling: Integrated motor cooling fan
- Air Filter: Serviceable / Replaceable
- Rated Voltage: 13.8V DC
- Max Load: 65A @ 13.8V DC
- Rated Power: 850W
- Warranty: 4 Year
What Matters.
Fast, High Volume & Continuous

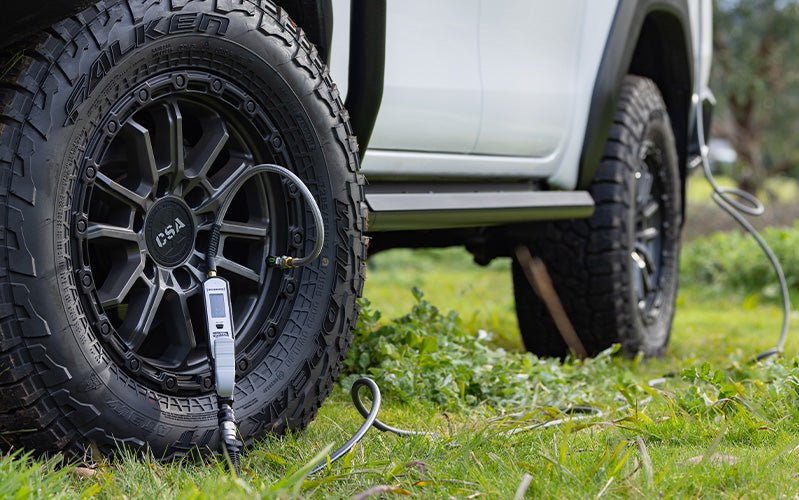

The brushless aluminium MX195 delivers 195 litres per minute from 0 psi and maintains 130-135 litres per minute up to 30 psi, this high-performance compressor will inflate an average 33" off-road tyre from sand pressures (~ 15 psi) to road pressures (~ 38 psi) in less than 2 minutes.
The 100% duty cycle speaks to the compressor's durability and capability to literally operate all day long, while the IP67 rating covers the compressor for water and dust ingress as well as brief submersion.
Nothing Beats Easy
The real winner for the MX195 is the operator, because nothing beats easy!
Say goodbye to emptying everything out of the car to get to the compressor, popping the bonnet and connecting battery terminals (That's if you remembered to pack it in the first place).

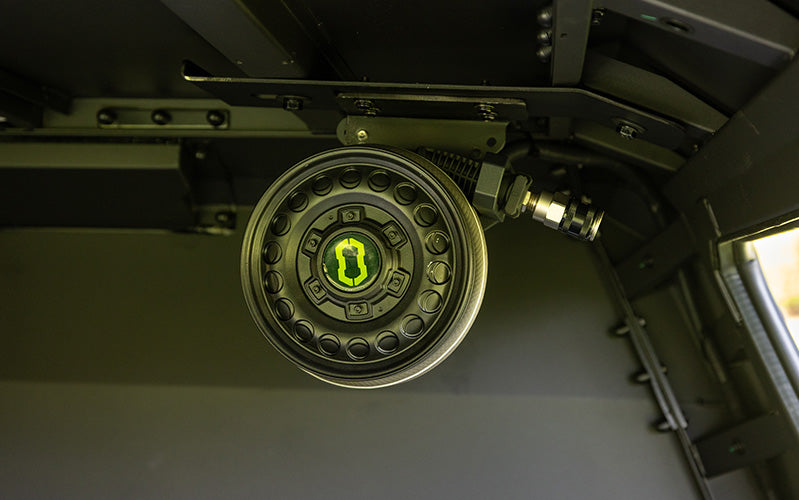

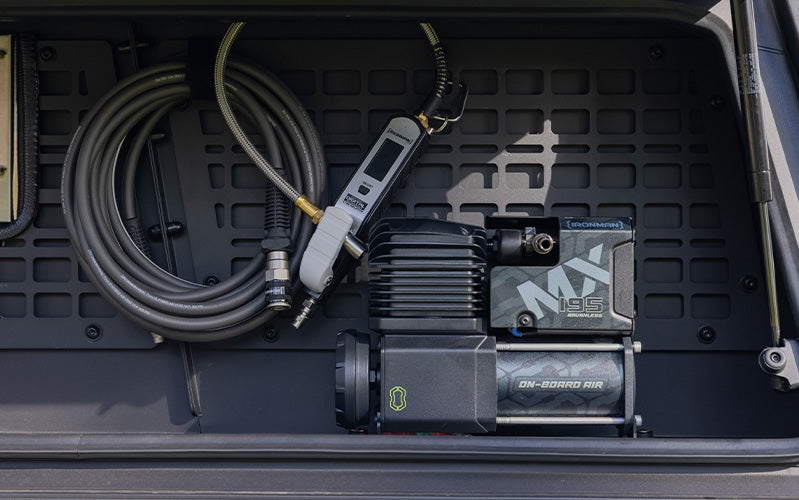

Onboard air means connecting a hose to a permanently mounted receiver, pressing a switch and away you go.
Coupling your MX195 with a range of mountable accessories, could mean you don't even need to connect the hose!
Versatility To Suit Your Needs

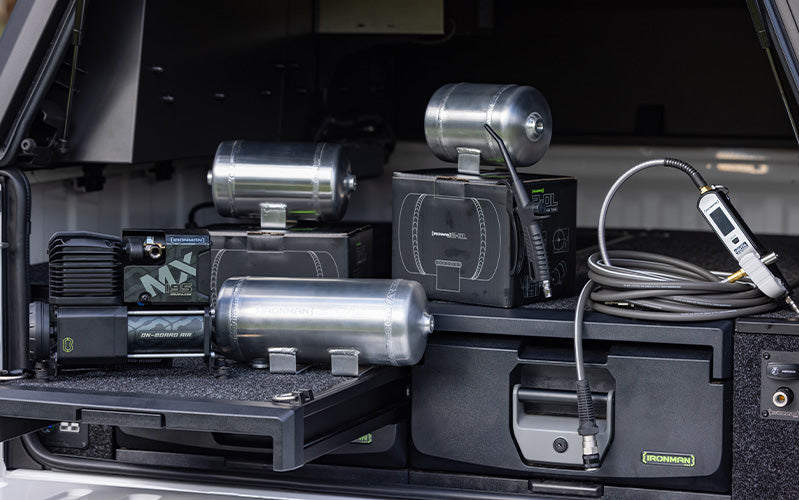

The MX195 is no 'one-trick pony'. You can choose between a standalone and simple quick-connect inflation device through an intricate on-board air ecosystem with tanks, ports and hoses.
The brushless and self-lubricating motor allows for the compressor to be mounted both horizontally and vertically, while the integrated rubber feet help reduce vibration and noise.
And the twin-outlet feature means you can choose to connect via the manifold or direct off the cylinder head with either Nitto-style connections or a braided line.
Durability Delivers Reliability
4x4 accessories are an investment and you want them to last. The MX195 has been designed for performance and reliability!
The MX195 looks after itself with its low-temperature, maintenance-free brushless aluminium motor with integrated cooling plus thermal, current and voltage overload protection. The two-factor (electronic & mechanical) 150 psi pressure-max safety cut-off protects the entire air compressor ecosystem from over-pressurising as well as intelligent pressure management for reduced stress on the motor throughout constant operation.
The only serviceable component is a washable and replaceable foam air filter.
