IM2.5 Suspension Kit - Extra HeavyFor Toyota LC 78 Series
$2,915.20
$3,643.99
$2,915.20

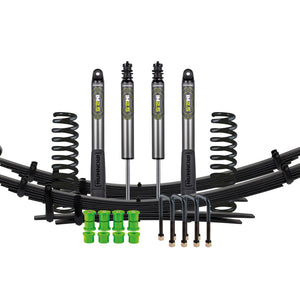

What's inside the kit
| Product | Qty |
|---|---|
|
Coil Springs - Heavy
TOY046C-B
|
1 |
|
Leaf Spring
TOY047D
|
2 |
|
U-Bolt Kit
416UBK
|
2 |
|
IM2.5 Shock Absorber
73-057-094L
|
2 |
|
IM2.5 Shock Absorber
74-057-091
|
2 |
|
Front Bump Stop Spacer Kit
09-100-006
|
1 |
|
Polyurethane Spring Bush Kit
1084UK
|
1 |
|
Front Bump Stop Spacer Kit
09-100-001
|
1 |
|
Extended Brake Hose Kit
BHOSE002
|
1 |
Required Products
There are required products for this item. .
Product Information
Overview
The aluminium advantage
Aluminium is lighter than steel, in fact, the IM2.5 offers a 30% weight reduction over a twin-tube steel shock absorber.
Additionally, the use of aircraft-grade 6061-T6 Aluminium in the IM2.5 offers improved cooling, which in turn means a shock absorber which can run harder, for longer, without diminishing its performance.
Aluminium is known for its improved heat management and has 4 times the thermal conductivity of steel.
Ultimate tuning
The IM2.5 Monotube suspension series features a CNC ported billet aluminium piston with a O-Ring sealed PTFE-Teflon band. The precision channelling allows for ultimate tuning to soften the smallest of bumps in the road.
The billet aluminium Internal Floating Piston (IFP) features class-leading NOK seals and separates the high-pressure 200PSI nitrogen gas from the Fuchs hydraulic oil.
Built to last
With a wall thickness ranging 3-4mm across the range, the IM2.5 monotube shock absorber tube is finished with ultra thick and durable Type 2 anodising, for ultimate protection.
The monotube tech has also allowed us to mount the shock absorbers ‘upside down’ keeping the monotube body mounted high away from rocks and debris, and the 20mm hardened steel piston rod is downward yet protected by a robust dirt shield.
