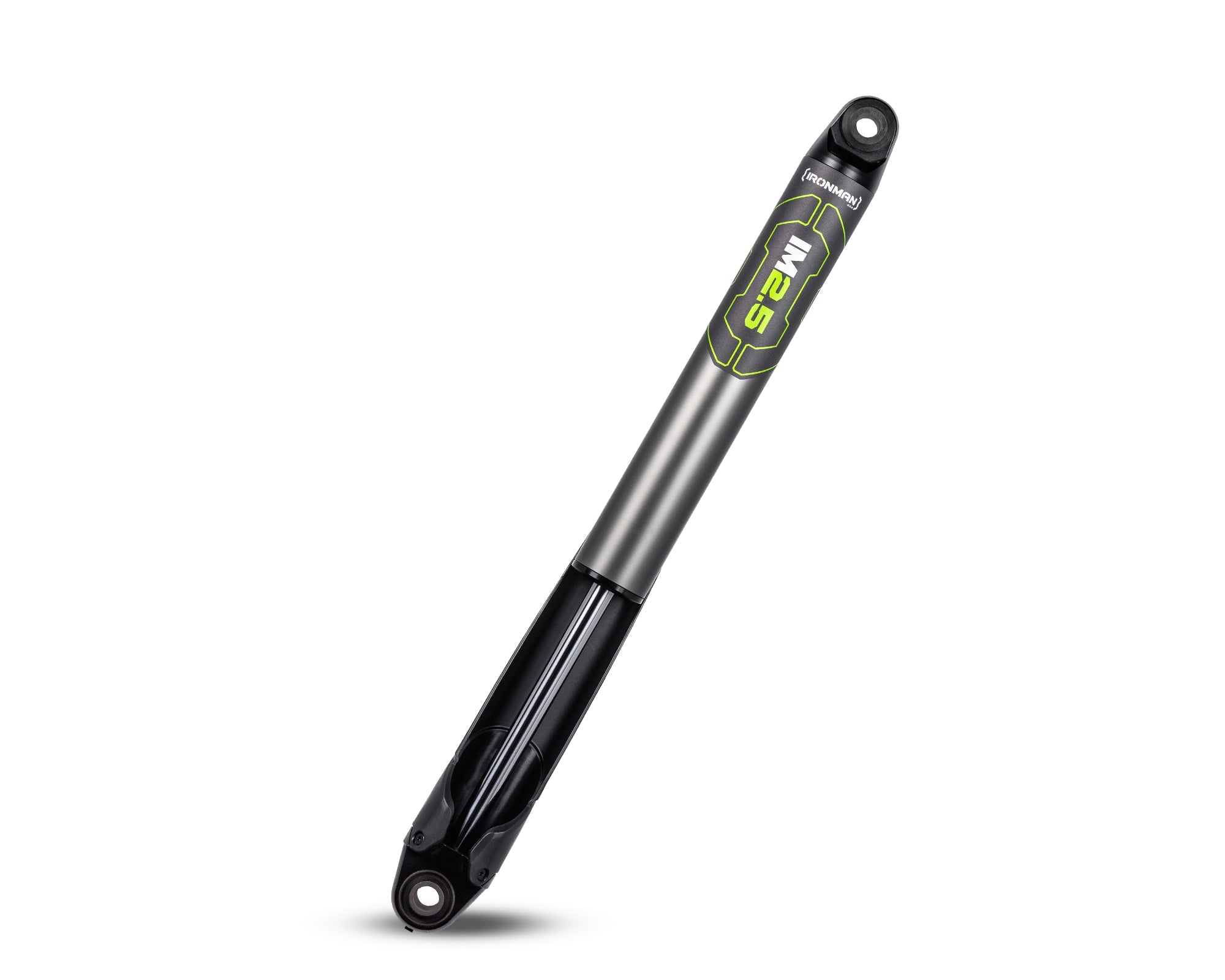

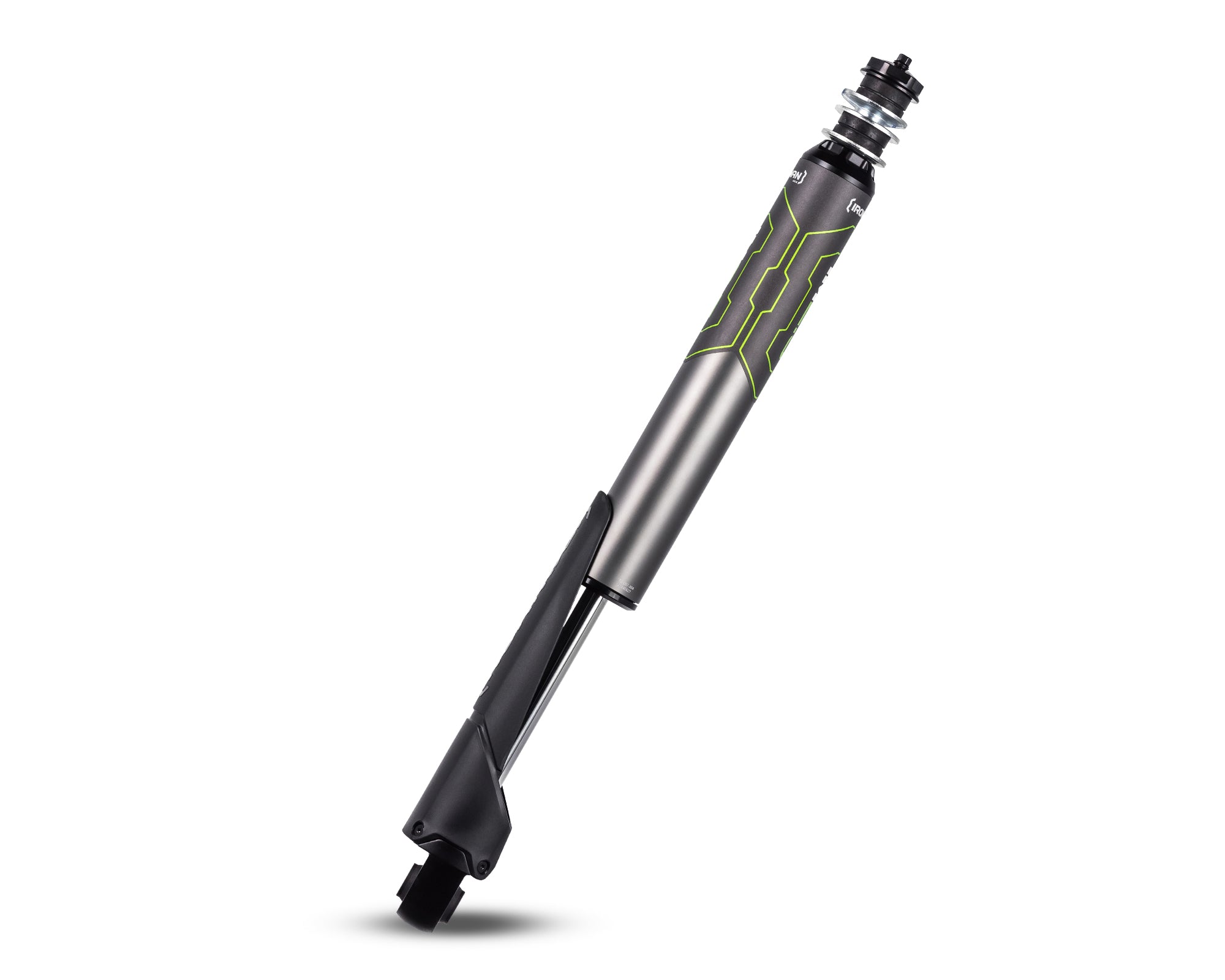

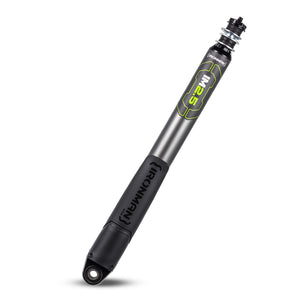

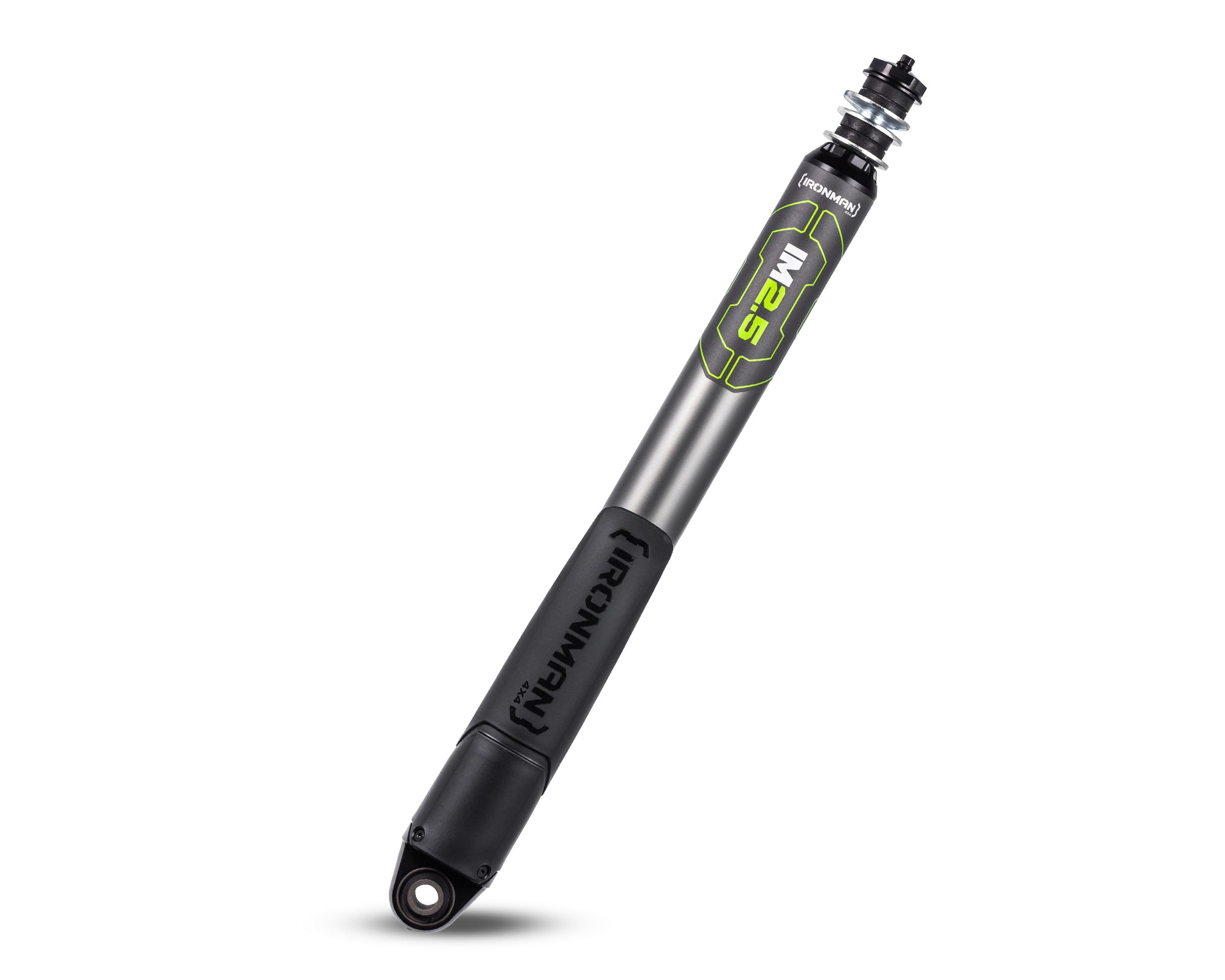

IM2.5 Monotube Shock Absorber (Rear)For Isuzu MU-X (14+)
SKU: 72-057-746
$375.00
$375.00
There are required products for this item. .
Product Information
Overview
SHOCK ABSORBERS
The IM2.5, a 2.5” extruded aluminium monotube shock absorber, has been tuned for Ultimate Ride Comfort while leveraging class-leading materials and design elements to offer a robust and versatile on- and off-road suspension solution.
If you’re looking for a suspension setup that provides the perfect combination of comfort and control, the search is over!
TUNING
Featuring a 57mm CNC billet aluminium piston, the IM2.5 shock absorber takes advantage of the maximised internal capacity for optimal fine-tuning. The large-diameter piston features low-speed bleed ports which ensure a smooth and plush ride both on urban and metro roads through to rock crawling high-country tracks.
The IM2.5 is tuned perfectly for those who truly value all-day comfort in their 4x4 suspension solution.
COOL OPERATOR
Designing an aluminium monotube shock absorber is beyond having a shock that delivers on the ‘cool factor’. Internal heat is a shock absorber’s kryptonite. Aluminium is proven to be up to 4x more efficient in managing heat than steel, which makes it the optimal material for heat dissipation in a shock absorber. Additionally, the monotube design optimised the cooling efficiency further by offering a greater surface area and respectively greater direct cooling to the internal hydraulic fluids.
TRAIL-READY TOUGHNESS
The IM2.5 is no city slicker. The monotube aluminium body is Type 2 hard anodised to ensure a robust finish to handle an off-road beating. Further the 3-4mm thick walls are cleverly mounted upside down to keep them further out of harm’s way, with a robust dirt shield is utilised on all rear shock absorbers to further help protect the 20mm hardened steel rod and renowned NOK seals of the IM2.5 monotube shock absorber.
IFP (INTERNAL FLOATING PISTON) DESIGN
The IM2.5 was designed with comfort and robustness in mind; and while the temptation was there for a remote reservoir, the inline design of a billet aluminium internal floating piston matched with high-pressure (200PSI) nitrogen gas offers an unmatched simplicity and robustness for off-road tourers.
TOP-LEVEL SPECS
- Extruded 6061-T6 Aircraft grade aluminium
- 2.5”, 3-4mm thick body
- Type 2 hard anodised exterior
- CNC Billet aluminium pistons
- 20mm hardened steel rod
- Robust dirt shield
- Vehicle-specific tuning
