Foam Cell Post-Registration GVM Upgrade (3500kg-Medium)For Ford Ranger PX (11-15)
SKU: FOR005BKFGVM1
$3,675.02
$3,675.02

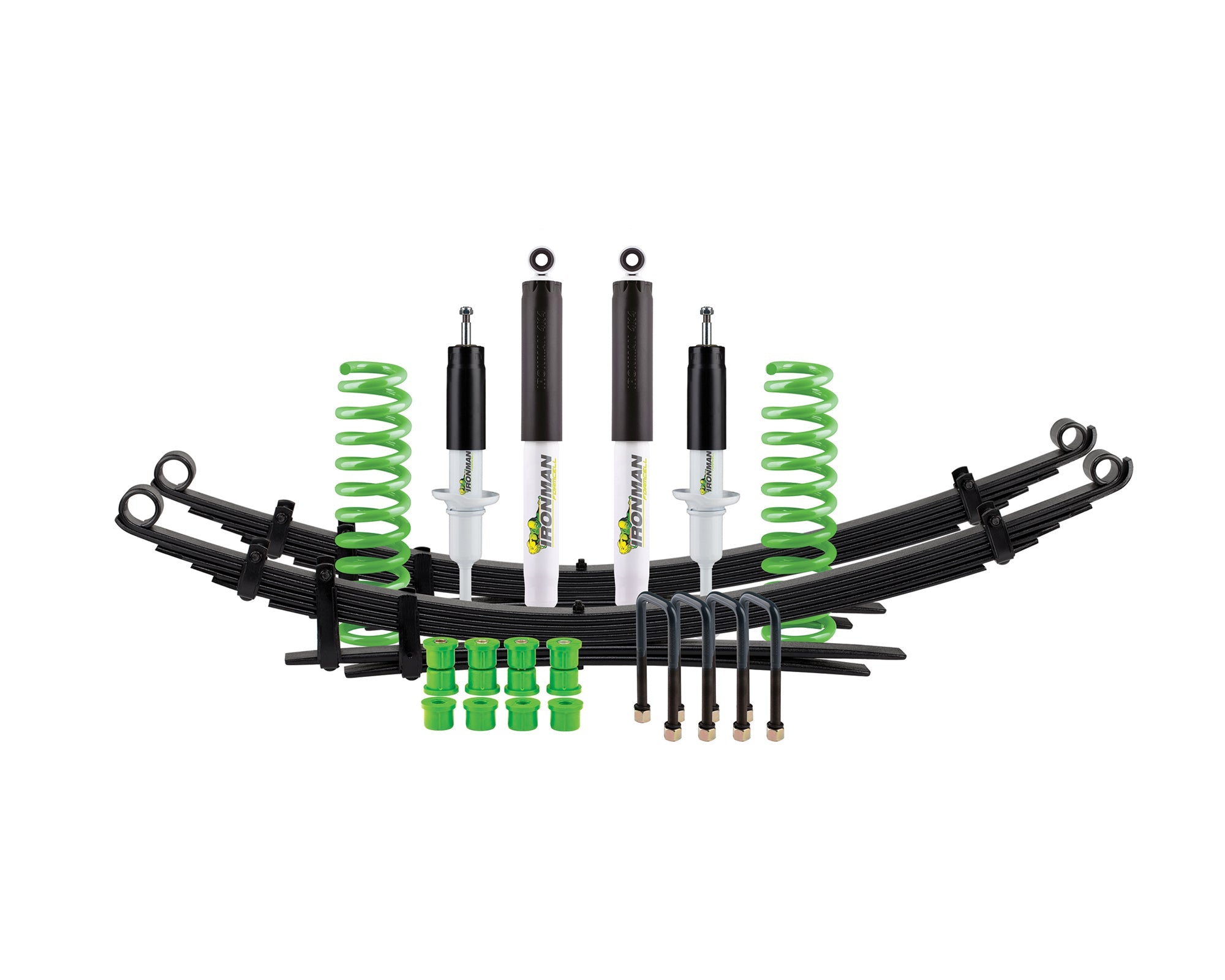

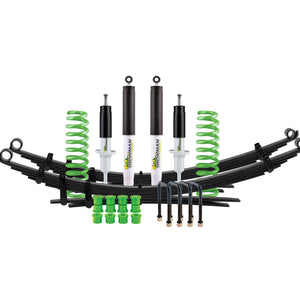

What's inside the kit
| Product | Qty |
|---|---|
|
Coil Springs
FOR005B
|
1 |
|
GVM Resin Badge (White)
STICKERGVMWHITE
|
1 |
|
Foam Cell Shock Absorber - Professional
24095FEP
|
2 |
|
GVM Resin Badge (Black)
STICKERGVMBLACK
|
1 |
|
Polyurethane Spring Bush Kit
1193UK
|
1 |
|
Foam Cell Strut - Performance
24827FE
|
2 |
|
U-Bolt Kit
417UBK
|
2 |
|
Centre Bearing Spacer Kit
1194K
|
1 |
|
Leaf Spring - Medium
FOR002B
|
2 |
|
GVM Tyre Placard
FM-EN-20
|
1 |
|
Non-Greasable Pin
387-1
|
2 |
|
Greasable Shackles
1147
|
2 |
There are required products for this item. .
Product Information
Overview
The IRONMAN 4X4 Foam Cell 'B' Lift Kit is a proven oversized, steel, twin-wall shock absorber design featuring foam cell technology; this kit is matched with 'B' (Medium) springs. Providing improved control and comfort, the Foam Cell range offers performance plus, focusing on improved ride control and shock cooling.
Key Features:
- 2-Year Warranty: Quality we stand by, with a 2 Year warranty or 40,000km unless otherwise stated.
- Twin Wall Design: The proven twin-wall design offers a robust strut that withstands harsh Australian off-road conditions.
- Steel Construction: The full 3mm steel construction ensures a strong shock absorber and spring seat to handle the most demanding loads.
- Foam Cell Technology: Foam Cell tech separates the gas from the hydraulic fluid which reduces cavitation.
- Vehicle-Specific Tuning: Each Foam Cell shock absorber is tuned for your specific vehicle for optimal ride and lift.
- Australian Engineered: All Foam Cell shock absorbers are designed and engineered in our Melbourne development and testing centre.
- Includes required parts: All the essential parts such as shocks, springs and bushes are included.
Tech Specs:
- 18mm Rod
- 40mm Piston
- 64mm Body
- Matched with 'B' rated Medium suspension springs
| Front Axle Rating | Rear Axle Rating | Gross Vehicle Mass (GVM) | Gross Combined Mass (GCM) | Towing Capacity (Braked) | |
|---|---|---|---|---|---|
| Original Equipment (OE) | 1480kg | 1850kg | 3200kg | 6000kg | 3500kg |
| IRONMAN 4X4 | 1500kg | 2000kg | 3500kg | 6000kg | 3500kg |
