Foam Cell Pro Post-Registration GVM Upgrade (3500kg-Extra Heavy-NA Compliance)For Ford Ranger Next Gen (22+) & VW Amarok 2nd Gen (23+)
SKU: FOR010DKPGVM1-NA
$4,281.99
$4,281.99

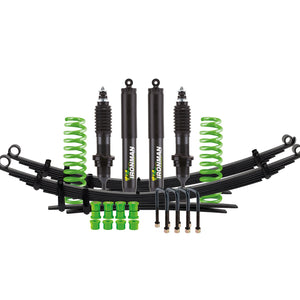

What's inside the kit
| Product | Qty |
|---|---|
|
GVM Resin Badge (Black)
STICKERGVMBLACK
|
1 |
|
U-Bolt Kit
438UBK
|
2 |
|
Foam Cell Pro Strut - Performance
45885FE
|
2 |
|
GVM Resin Badge (White)
STICKERGVMWHITE
|
1 |
|
Coil Springs - Medium
FOR010B
|
1 |
|
Polyurethane Spring Bush Kit
1193UK
|
1 |
|
Greasable Shackles
1147
|
2 |
|
Foam Cell Pro Shock Absorber - Professional
45886FEP
|
2 |
|
Non-Greasable Pin
387-1
|
2 |
|
Centre Bearing Spacer Kit
1223K
|
1 |
|
Leaf Spring - Extra Heavy
FOR012D
|
2 |
There are required products for this item. .
Product Information
Overview
The Ironman 4x4 Foam Cell Pro 'D' Lift Kit is the ultimate Outback solution. This kit is matched with 'D' (extra-heavy) springs. This military-grade, oversized, steel, twin-wall shock absorber is practically bulletproof. Featuring foam cell technology and providing improved control for heavy loads, the Foam Cell Pro range is simply Bigger, Bolder, and Better!
Key Features:
- 4-Year Warranty: Quality we stand by, with a 4-year unlimited kilometre warranty.
- Twin Wall Design: The proven twin-wall design offers a robust strut that withstands harsh Australian off-road conditions.
- Steel Construction: The full 3mm steel construction ensures a strong shock absorber and spring seat to handle the most demanding loads.
- Foam Cell Technology: Foam Cell tech separates the gas from the hydraulic fluid which reduces cavitation.
- Vehicle-Specific Tuning: Each Foam Cell shock absorber is tuned for your specific vehicle for optimal ride and lift.
- Australian Engineered: All Foam Cell shock absorbers are designed and engineered in our Melbourne development and testing centre.
- Includes required parts: All the essential parts such as shocks, springs and bushes are included.
Tech Specs:
- 20mm Rod
- 45mm Piston
- Up to 74mm body
- Matched with 'D' rated suspension spring
| Front Axle Rating | Rear Axle Rating | Gross Vehicle Mass (GVM) | Gross Combined Mass (GCM) | Towing Capacity (Braked) | |
|---|---|---|---|---|---|
| Original Equipment (OE) | 1450kg | 1960kg | 3230kg | 6400kg | 3500kg |
| IRONMAN 4X4 | 1640kg | 2100kg | 3500kg | 6400kg | 3500kg |
