Foam Cell Post-Registration GVM Upgrade (3500kg-Extra Heavy-NA Compliance)For Ford Ranger Next Gen (22+) & VW Amarok 2nd Gen (23+)
SKU: FOR010DKFGVM1-NA
$3,772.01
$3,772.01

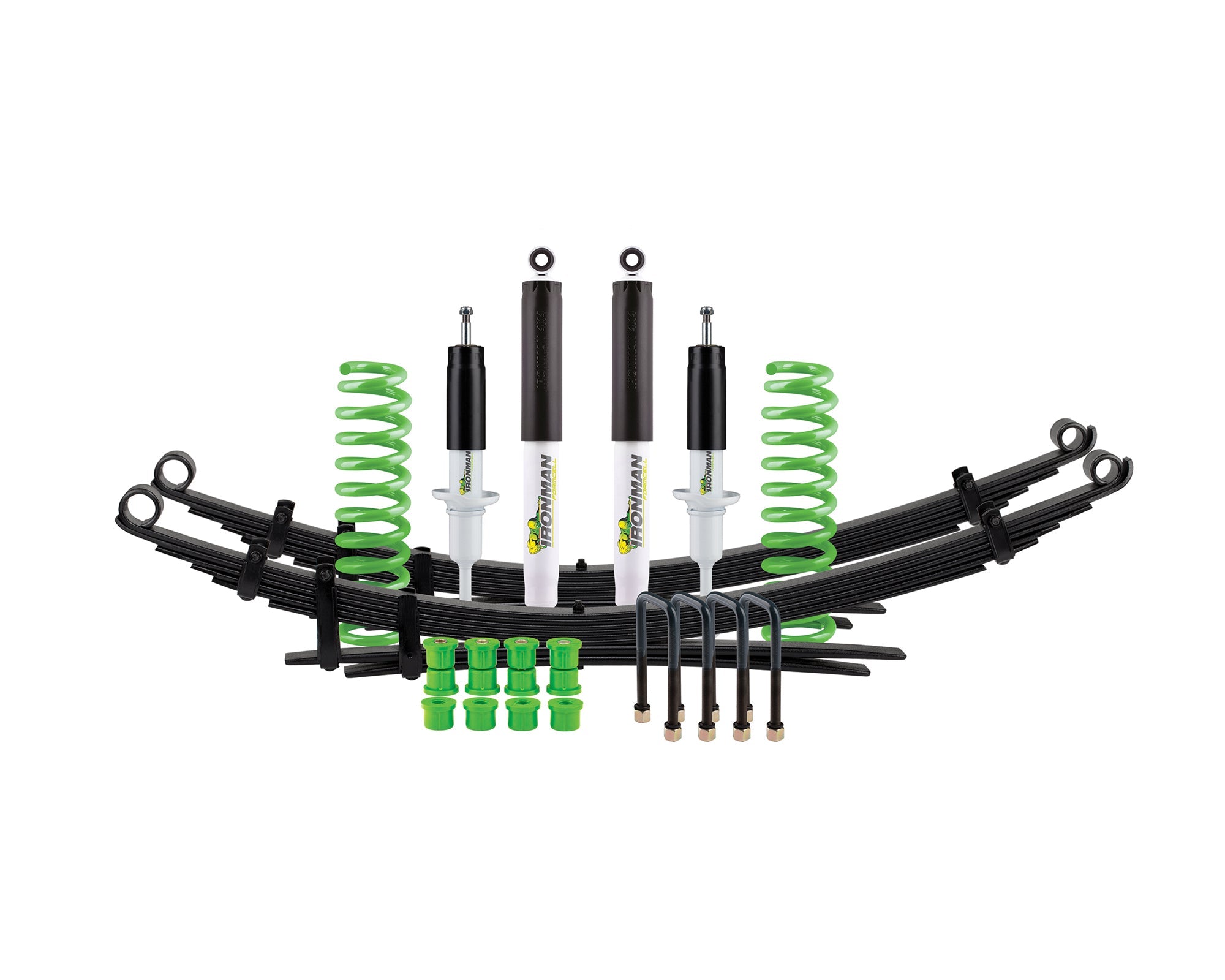

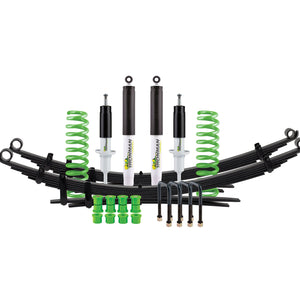

What's inside the kit
| Product | Qty |
|---|---|
|
Non-Greasable Pin
387-1
|
2 |
|
Centre Bearing Spacer Kit
1223K
|
1 |
|
Coil Springs - Medium
FOR010B
|
1 |
|
Foam Cell Shock Absorber - Performance
24886FE
|
2 |
|
GVM Resin Badge (White)
STICKERGVMWHITE
|
1 |
|
Polyurethane Spring Bush Kit
1193UK
|
1 |
|
Greasable Shackles
1147
|
2 |
|
U-Bolt Kit
438UBK
|
2 |
|
Leaf Spring - Extra Heavy
FOR012D
|
2 |
|
Foam Cell Strut Shock Absorber - Performance
24885FE
|
2 |
|
GVM Resin Badge (Black)
STICKERGVMBLACK
|
1 |
There are required products for this item. .
Product Information
Overview
The IRONMAN 4X4 Foam Cell 'D' Lift Kit is a proven oversized, steel, twin-wall shock absorber design featuring foam cell technology; this kit is matched with 'D' (Extra Heavy) springs. Providing improved control and comfort, the Foam Cell range offers performance plus, focusing on improved ride control and shock cooling.
Key Features:
- 2-Year Warranty: Quality we stand by, with a 2 year warranty or 40,000km unless otherwise stated.
- Twin Wall Design: The proven twin-wall design offers a robust strut that withstands harsh Australian off-road conditions.
- Steel Construction: The full 3mm steel construction ensures a strong shock absorber and spring seat to handle the most demanding loads.
- Foam Cell Technology: Foam Cell tech separates the gas from the hydraulic fluid which reduces cavitation.
- Vehicle-Specific Tuning: Each Foam Cell shock absorber is tuned for your specific vehicle for optimal ride and lift.
- Australian Engineered: All Foam Cell shock absorbers are designed and engineered in our Melbourne development and testing centre.
- Includes required parts: All the essential parts such as shocks, springs and bushes are included.
Tech Specs:
- 18mm Rod
- 40mm Piston
- 64mm Body
- Matched with 'D' rated extra heavy suspension springs
| Front Axle Rating | Rear Axle Rating | Gross Vehicle Mass (GVM) | Gross Combined Mass (GCM) | Towing Capacity (Braked) | |
|---|---|---|---|---|---|
| Original Equipment (OE) | 1450kg | 1960kg | 3230kg | 6400kg | 3500kg |
| IRONMAN 4X4 | 1640kg | 2100kg | 3500kg | 6400kg | 3500kg |
