Eclipse Driving Light (5X7, Shooter)
SKU: ILED5X7
1 LUX RATING (SINGLE)
RAW LUMENS
LUMEN EFFICIENCY
$200.00
$200.00
There are required products for this item. .
Product Information
Overview

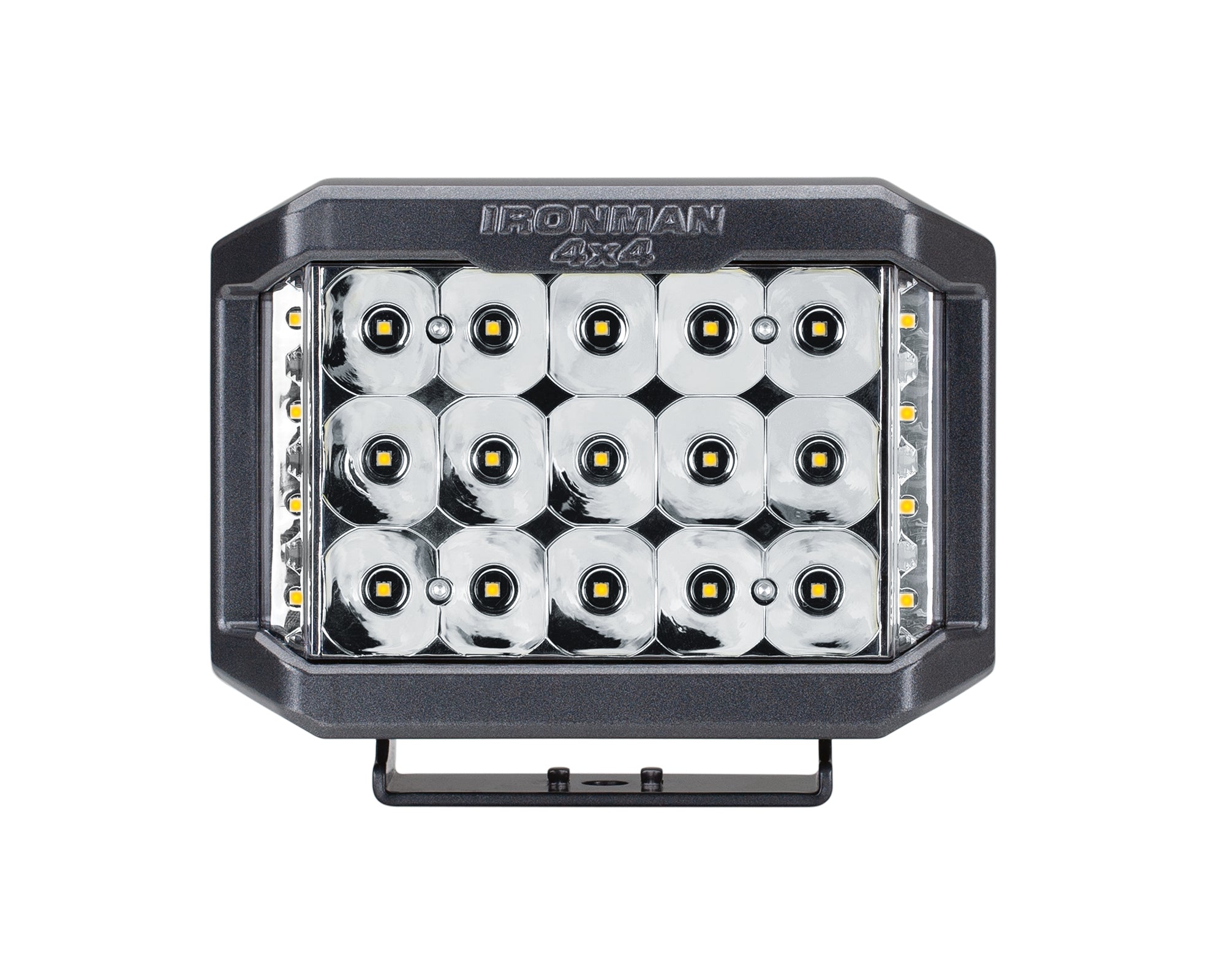

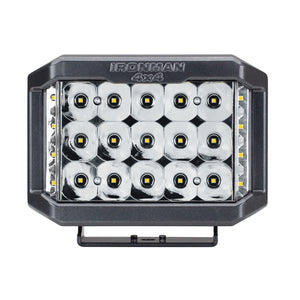

The Eclipse 5×7 driving lights offer a whole different look, and well complement many, if not most vehicles with their squared off appearance. Combining 15 high powered LEDs for forward projection and 8 side-shooters for optimal spread, the Eclipse 5×7 features a cast aluminium heat sink, IP67/69 rating as well as a virtually indestructible polycarbonate lens.
Class Leading OSRAM LEDs
50,000 hour lifespan
6000-KELVIN Colour
optimal light that’s easy on the eyes

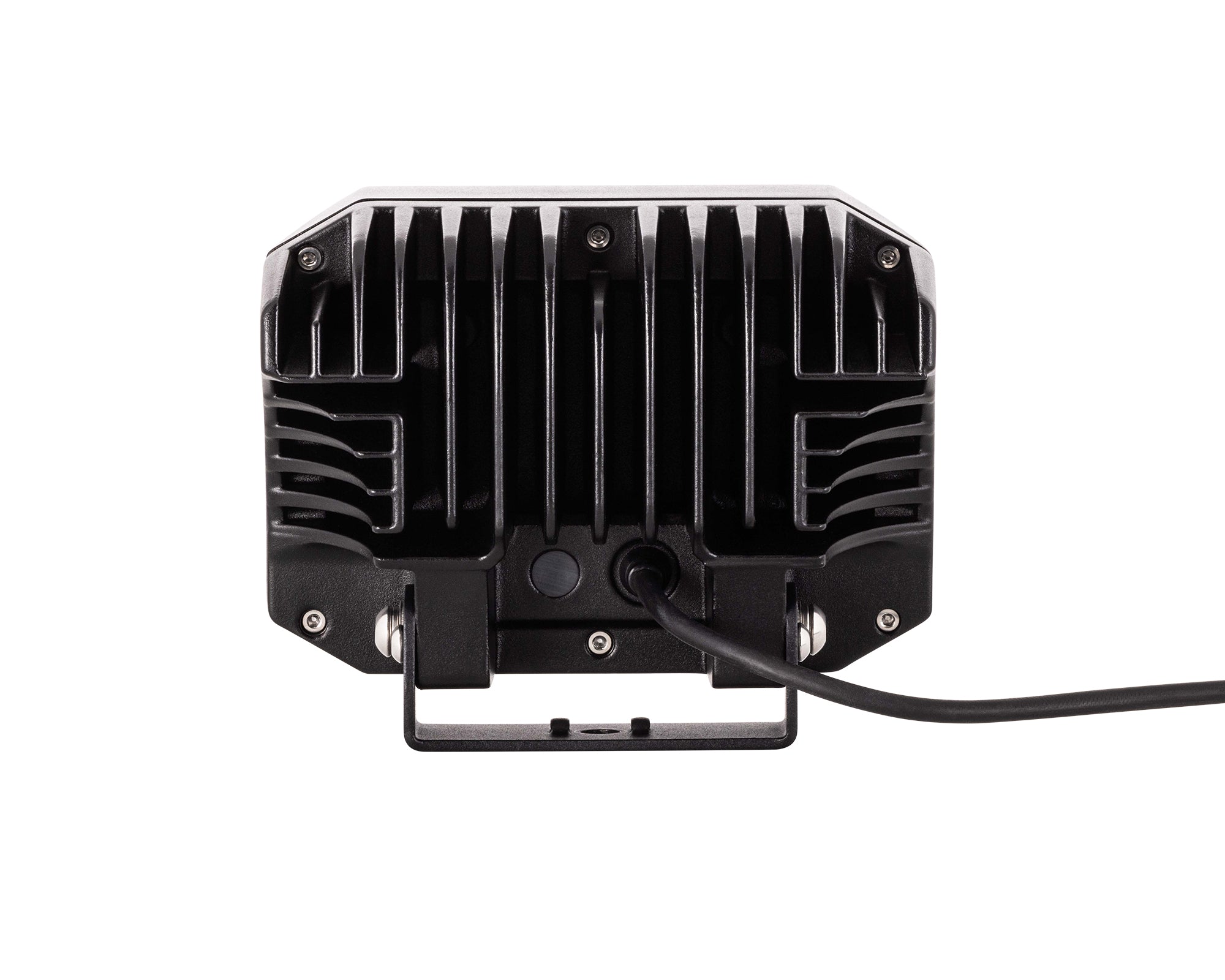

Diecast Alloy Housing
withstand extreme conditions
Straight- up Distance, Good Spread
Bringing back the retro style in driving lights with these 5×7 Eclipse LED driving lights.
The perfect rectangle shape combined with a side shooter spread provides straight-up distance with a pleasing amount of spread.
Designed and engineered to produce the closest imitation light to natural daylight (6000K), the 5×7 Eclipse driving light provides a beam reach of over 1.3km with a combined wattage of 99W per light.
Specifications:
Raw Lumens: 7,540
Effective Lumens: 5,654
Lumen Efficiency: 74.99%
LEDS: OSRAM
LED Configuration: 15 x 5W and 8 x 3W
Dimmability: No
IP Rating: IP67/69K
1 LUX Rating: Single: 648m
LUX @ 10M: 4,200
Max Power: 75W
Current Draw: ~6.48 amps @ 12V
Kelvin (Colour): 6,000K
Dimensions (Light): 177mm(l) x 164mm(w) x91mm(d)
Height (including mount): 164mm (6.4”)
